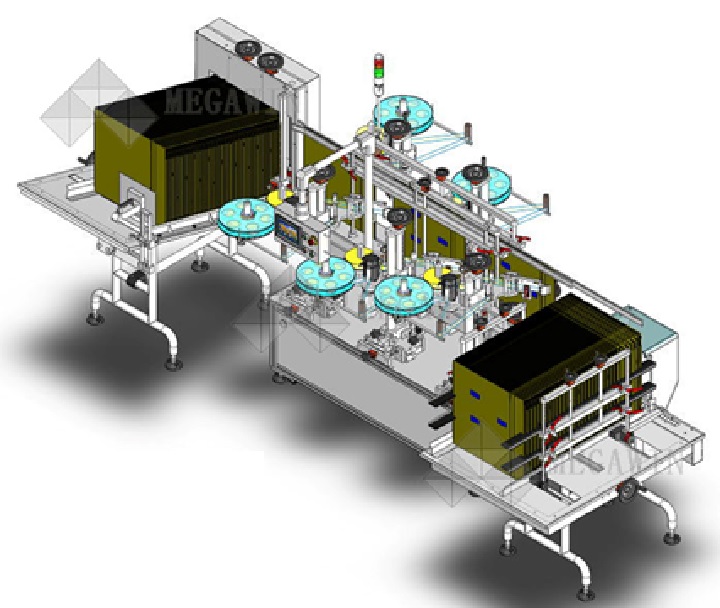

Automatic labeling system

Labeling of outer box


Labeling system

Round bottle labeling + AFS anti counterfeiting labeling

  • The whole machine is made of 304 stainless steel and aluminum alloy. The transmission part is designed according to CE and relevant safety production requirements, safe and reliable.

    This machine can be produced by single machine or connected with other packaging machines.




    1. Machine parameters

    Production speed

    100-180 pieces / minute

    Product qualification rate

    More than 99.99%

    Conveyor belt allowed box width

    ~150mm

    Conveyor belt allowed  box height

    ~60mm

    Marker speed

    5~60m/min

    Top surface labeling accuracy

    ± 0.5mm (excluding product itself and label error)

    Corner labeling accuracy

    ± 1 mm (excluding product itself and label error)

    Belt speed

    5-60m / min. Can be equipped with thermal printer, ribbon printer, water-based ink printhead, oil-based ink printhead, inkjet printer and other coding equipment.



  • t6_5d1a71a8492a38.jpg

    Simple operation, compact structure, safe and reliable. Use photocell to detect material, Siemens PLC control system, touch screen human-machine interface control, and has the functions of automatic box splitting, automatic top labeling, automatic corner sealing labeling, missing label rejection, etc.
